Oracle ASM (Automatic Storage Management): Disk Groups, Rebalance and Best Practices

Storage is where a lot of Oracle performance and availability problems are quietly born - fragmented files, uneven I/O across disks, painful storage migrations that need downtime. Oracle ASM (Automatic Storage Management) exists to make those problems go away by acting as Oracle's own volume manager and file system, purpose-built for database files. If you run RAC you already depend on it, and even on single instances it is Oracle's recommended way to lay out storage. This guide explains what ASM actually is, how disk groups and redundancy work, how to add and drop storage online with rebalance, and how to monitor and troubleshoot it in production.

1. What ASM Actually Is

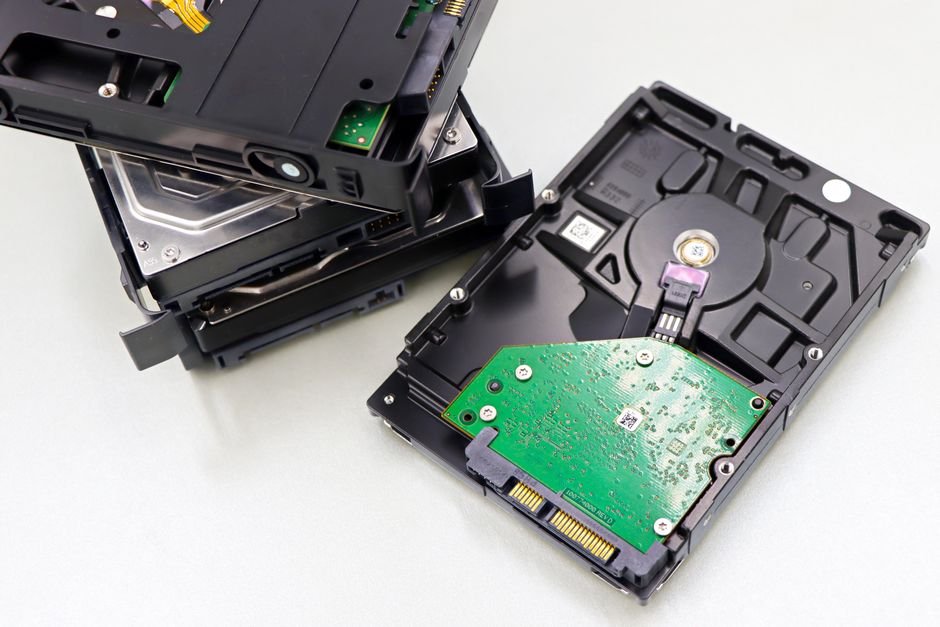

Automatic Storage Management is a lightweight volume manager and file system that Oracle provides specifically for database files - datafiles, control files, redo logs, archive logs, and RMAN backups. Instead of placing files on a traditional file system and worrying about which disk holds what, you give ASM a set of raw disks and it manages the layout for you.

ASM does three things a normal file system does not do well for databases. It stripes every file evenly across all the disks in a group, so I/O is balanced automatically. It can mirror data across disks for redundancy. And it rebalances online when you add or remove storage, moving data with no downtime. It also avoids the fragmentation that plagues ordinary file systems under heavy database write activity.

2. Why Use ASM Instead of a File System?

The honest answer is balance, simplicity, and online change. On a file system, a DBA has to decide which datafile goes on which mount point and hope the I/O works out evenly - it rarely does, and hot files create hot disks. ASM spreads every file across every disk automatically, so the load is even by design.

The second reason is online storage operations. Need more space? Add disks and ASM rebalances live. Retiring an old SAN? Add the new disks, drop the old ones, and ASM migrates the data while the database stays open. Doing that on a file system usually means downtime. For RAC, ASM is effectively required, because it provides the shared storage all nodes see identically.

3. Disk Groups, Redundancy and Failure Groups

The central concept is the disk group - a set of disks ASM manages as a single pool. Most sites run at least two: one for data (often called DATA) and one for the Fast Recovery Area (FRA). Each disk group has a redundancy level chosen when you create it:

• External redundancy: ASM does no mirroring; you rely on the storage array's own RAID. Simple and space-efficient when you trust the SAN.
• Normal redundancy: ASM keeps two copies of each extent, mirrored across failure groups - survives losing one failure group.
• High redundancy: three copies - survives losing two failure groups. Used where the storage itself is not otherwise protected.

A failure group is how you tell ASM which disks share a risk - for example, all disks in one storage enclosure or on one controller. With normal or high redundancy, ASM guarantees the mirror copies land in different failure groups, so a whole enclosure can fail without data loss.

4. Creating and Managing Disk Groups

You can manage ASM through the asmca GUI, but the SQL and command-line paths are what you script and automate. Disk group DDL runs from an ASM instance connection (sqlplus / as sysasm).

-- Create a normal-redundancy disk group with two failure groups
CREATE DISKGROUP data NORMAL REDUNDANCY
  FAILGROUP fg1 DISK '/dev/sdb1' NAME data_0001
  FAILGROUP fg2 DISK '/dev/sdc1' NAME data_0002
  ATTRIBUTE 'au_size' = '4M',
            'compatible.asm' = '19.0.0.0.0',
            'compatible.rdbms' = '19.0.0.0.0';

The allocation unit (au_size) is the striping granularity; 4M is a common choice for large databases. Once created, the database simply references files by disk group name, for example +DATA, and ASM handles physical placement.

5. Adding and Dropping Disks: Online Rebalance

This is ASM's best feature in daily operations. Storage changes happen while the database is open.

-- Add a new disk - ASM automatically starts a rebalance
ALTER DISKGROUP data ADD DISK '/dev/sdd1' NAME data_0003;

-- Retire an old disk - data migrates off it, then it drops
ALTER DISKGROUP data DROP DISK data_0001;

-- Control how aggressively the rebalance runs (0 = pause, 1 = gentle, up to high)
ALTER DISKGROUP data REBALANCE POWER 4;

-- Watch rebalance progress
SELECT operation, state, power, sofar, est_work, est_minutes
FROM   v$asm_operation;

The REBALANCE POWER setting is the practical lever. A high power finishes faster but consumes more I/O, so during business hours you keep it modest and raise it in quiet windows. A dropped disk is not physically removed until its rebalance completes and V$ASM_DISK shows it gone - pulling it early risks data loss on normal redundancy.

6. Monitoring ASM Day to Day

Two toolsets cover almost everything: the asmcmd command line and the V$ASM views.

-- asmcmd: quick space and file checks (as the grid user)
asmcmd lsdg              # disk groups with free/used space
asmcmd lsdsk -k          # disks and their sizes
asmcmd du +DATA/ORCL     # space used by a database's files

-- SQL: free space and disk health
SELECT name, type, total_mb, free_mb,
       ROUND(free_mb/total_mb*100,1) AS pct_free
FROM   v$asm_diskgroup;

SELECT group_number, name, path, mount_status, mode_status, state
FROM   v$asm_disk ORDER BY group_number;

The one number to alert on is free space per disk group. With normal or high redundancy you must also keep enough free space to survive a disk failure - the space needed to re-mirror the lost data - which ASM reports as required mirror free space. Running a mirrored disk group too full removes its ability to self-heal.

7. ASM in RAC and Flex ASM

In a RAC cluster, ASM runs as part of Grid Infrastructure and provides the shared storage every node sees. Historically each node ran its own ASM instance, and if that instance died the database instance on that node went down with it.

Flex ASM removed that tight coupling. Database instances connect to ASM over the network, and a fixed number of ASM instances serve the whole cluster. If a node's ASM instance fails, its databases simply reconnect to an ASM instance on another node and keep running. This makes the storage layer far more resilient, and it is the default modern configuration for RAC.

8. Common Issues and How to Handle Them

• Disk group filling up: the most frequent ASM alert. Add disks (online rebalance) or reclaim space in the FRA. Do not let a mirrored group run so full it loses its rebalance headroom.
• Rebalance taking too long or hurting performance: lower the REBALANCE POWER during business hours, raise it overnight. It is fully online and resumable.
• ORA-15041 (diskgroup space exhausted) / ORA-15040: space or a missing disk. Check V$ASM_DISK for a disk in an unexpected state and confirm the OS actually presents all the disks.
• Disk not discovered: ASM only sees disks matching its discovery string and with correct OS permissions. Verify the device permissions for the grid user and the asm_diskstring parameter.

9. A Real Migration: Swapping the SAN With Zero Downtime

A pharmaceutical client had to move a production database off an ageing storage array onto a new one, and the validated system could not take an outage. On a file system this would have meant a maintenance window and a risky copy.

What we did: presented the new array's LUNs to the server, added them to the DATA and FRA disk groups, and let ASM rebalance the data onto the new disks with a modest REBALANCE POWER during the day and a higher one overnight. Once the new disks were fully populated, we dropped the old ones - ASM migrated the last extents off them online - and had them removed only after V$ASM_OPERATION showed the rebalance complete. The database never closed, application users never noticed, and the validation record showed a clean, controlled change. This pairs naturally with a regular health check and sensible performance tuning, since balanced storage removes a whole class of I/O bottlenecks.

Frequently Asked Questions

What is Oracle ASM and why use it?

ASM (Automatic Storage Management) is Oracle's own volume manager and file system for database files. It automatically stripes data across all disks in a disk group for balanced I/O, can mirror for redundancy, and rebalances online when storage changes. It removes manual file placement and is the recommended storage layout, and effectively required for RAC.

What is a disk group and what redundancy should I choose?

A disk group is a pool of disks ASM manages as one. External redundancy does no ASM mirroring and relies on the array's RAID; normal redundancy keeps two mirrored copies across failure groups; high redundancy keeps three. Choose external when you trust the SAN's protection, and normal or high when you want ASM itself to protect against disk or enclosure loss.

Can I add or remove storage without downtime?

Yes - this is one of ASM's biggest strengths. Adding a disk triggers an online rebalance that spreads data onto it, and dropping a disk migrates data off it first, all while the database stays open. REBALANCE POWER controls how fast the operation runs versus how much I/O it consumes.

What does REBALANCE POWER do?

It sets how aggressively ASM moves data during a rebalance. A higher power finishes sooner but uses more I/O and can affect performance; a lower power is gentler but slower. A common practice is a modest power during business hours and a higher one overnight. Rebalance is online and resumable.

What is Flex ASM in a RAC cluster?

Flex ASM lets database instances connect to ASM over the network rather than depending on a local ASM instance on the same node. If a node's ASM instance fails, its databases reconnect to an ASM instance on another node and keep running, making the storage layer far more resilient. It is the default modern RAC configuration.
